1-line video kit N5110/ART 4W LITE 12205111
Brand: GOLMAR
Reference: 12205111
Description
Nexa video door entry kit with 2-wire technology. Composed by: N1110/AL grid module with a call button. EL632/G2+ SE sound module with color camera. Mounting frame N6001/AL. NCEV-90CS embedding box. ART 4W LITE/G2+ hands-free monitor 4.3 with integrated WIFI. FA-G2+ power supply.
Details

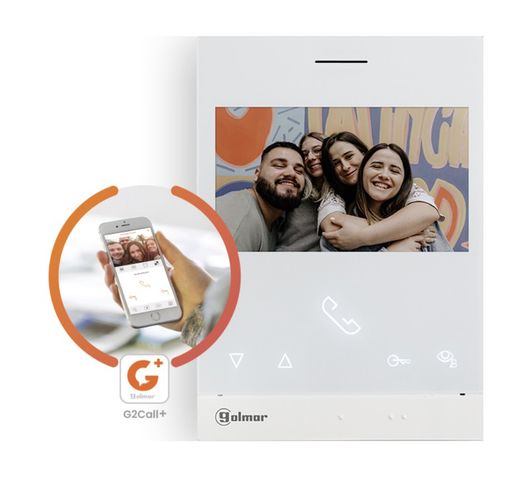

ART 4W LITE/G2+ MONITOR
Hands-free monitor for surface installation with integrated WiFi. 4.3" screen with capacitive navigation buttons.
High efficiency speaker.
Audio, video and secret door opening communications.
Video functions -spy, auto-ignition, Doctor mode and do not disturb.Intercommunication with other units in the same home selectively.Selection of different call tones.
Connection to the landing door pushbutton, which saves the use of the bell Output to auxiliary chime.
Dimensions: 110(W) x 155(H) x 14(D) mm.
Up to 4 monitors in the same home without power additional.
NEXA ALUMINUM PLATE
Extruded aluminum front.
Wide-angle 120o adjustable camera.
LED lighting controlled by digital image processing.
Voice messages and colored icons indicate the different states of the system (call in progress, in communication, door opening or busy system). Secret audio, video and door opening communications.
Relay outputs for the activation of two doors.
Use 12 Vdc lock release (Does not include lock release).
Recommended lock release: CV-24P/UNI (20600252).
Dimensions:
Exterior: 128(W) x 153( Al) mm. Built-in: 99(W) x 133(H) x 56(D) mm.
