DICHROMAT + 230V . Ceiling recessed motion detector. 360º.IP20. OB136112 Orbis
Brand: ORBIS
Reference: OB136112
Description

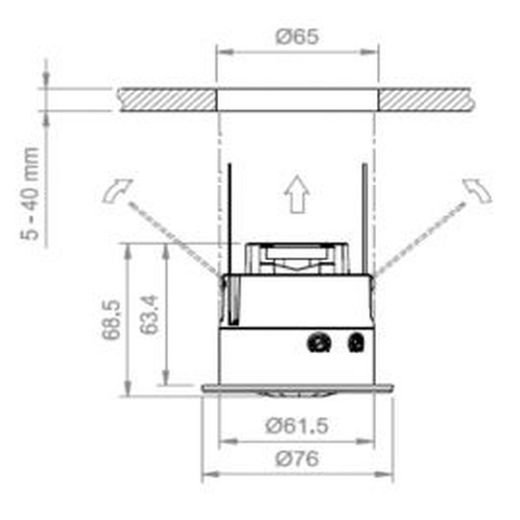

DICROMAT movement detector with recessed installation in practicable ceiling by means of a 65 mm hole. Discreet design in polished white with flat lens with high capture capacity. Basic functionalities that cover most installations. Equipped with external temperature compensator for more accurate detection. Double neutral terminal for ease of installation.
Details
Power supply: 230 V ac ± 10%.
Nominal frequency: 50/60 Hz.
· Own consumption: 5.5 VA (0.8 W).
Breaking power: µ 6 A / 230 V~ cosφ = 1.
· Detection angle: 360º.
· Detection field: Up to 10 m in diameter at 2.5 m in height.
· Light sensitivity: 3 to 2000 lux.
· Timing range: 10 s to 15 min.
Degree of protection: IP20 according to EN 60529.
· Operating temperature: -20 ºC to +40 ºC.
· Operating limit temperature: -20 ºC to +50 ºC.
Maximum loads:
- Incandescent: 1200 W.
- Fluorescent: 400 VA.
- Low voltage halogen (12 V a.c.): 1000 VA.
- Halogen (230 Vac): 1200.
- Low consumption lamps: 500 VA.
- Downlights: 500 VA.
-LED: 500VA.
