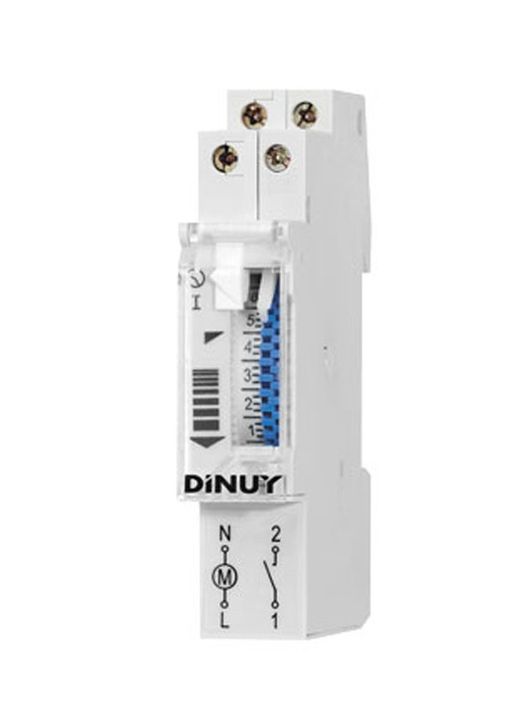

Dinuy 1 module analog time switch with reserve IH UNI QT
Brand: DINUY
Reference: IH UNI QT
Description
Analog time switch with a width and power reserve module. Manual switch: permanent or automatic ignition, Simple programming with captive easels, easy reading of the programming carried out, and simple installation.
Details
Product reference: IH UNI QT
Supply Voltage (V): 230VAC
Frequency (Hz): 50/60
Own Consumption: 0.5W
Output Channels: 1
Relay breaking capacity (A): 16
LED lamps (W): 200
Incandescend and Halogens 230V (W): 2,000
12V halogens with electronic transformer (W): 900
Halogens with ferromagnetic transformer (W): 900
Connection terminal type: With captive screws 4x4mm
Box: Self-extinguishing thermoplastic with gray RAL 7035 and transparent and sealable lid
Protection class: II according to VDE 0633
Switched contact: No
Sphere: 24H
Maneuvers: 0
Minimum maneuver: 15min
Time base: quartz controlled stepper motor
Running accuracy: ≤1.5sec / day, at 20ºC
Power reserve: with power reserve 100h
Contacts: silver-cadmium oxide microswitch
Mounting: DIN rail. 1 width module
Contactor supported: YES
Zero crossing: YES
Operating Temperature (ºC) (min): -10
Operating Temperature (ºC) (max): 50
Environmental Protection: IP20 according to DIN EN 60529
Comments
Questions (2)
Buenas tardes. Quería sustituir un interruptor para depuradora de piscina AT1e-R, 220-240v y 45/60Hz. Asegurarme si este modelo vuestro es compatible. Gracias
Buenas tardes, este interruptor horario tiene un contacto abierto, para hacer la maniobra sobre un contactor. Desconocemos el funcionamiento del reloj que nos comenta.
Interruptor horario IH UNI QT analógico Dinuy 1 módulo con reserva, hay un manual disponible referente este aparato, y en caso positivo, me lo podrían facilitar por e-mail? Es que tenemos este aparato y no sabemos como cambiar horarios. Gracias
https://d7rh5s3nxmpy4.cloudfront.net/CMP1490/files/IH-UNI-QT-Instruccion.pdf
