Dinuy analog time switch 2 daily modules with reserve IH BIM QT
Brand: DINUY
Reference: IH BIM QT
Description
Dinuy analogue time switch, two modules wide, power reserve and easy programming with captive trestles. Easy reading of the programming carried out and simple installation. Manual switch: permanent on, permanent off and automatic.
Details
Product reference IH BIM QT
Supply Voltage (V) 230VAC
Frequency (Hz) 50/60
Own Consumption 0.5W
Output Channels 1
Relay breaking capacity (A) 16
LED lamps (W) 200
Incandescend and Halogens 230V (W) 2.000
12V halogens with electronic transformer (W) 900
Halogens with ferromagnetic transformer (W) 900
Connection terminal type With captive screws 4x4mm
Self-extinguishing thermoplastic box with gray RAL 7035 and transparent and sealable lid
Protection class II according to VDE 0633
Changeover contact YES
24H sphere
Maneuvers 0
Minimum maneuver 30min
Quartz controlled stepper motor time base
Running accuracy ≤1.5sec / day, at 20ºC
Power reserve with power reserve 100h
Silver-Cadmium Oxide Microswitch Contacts

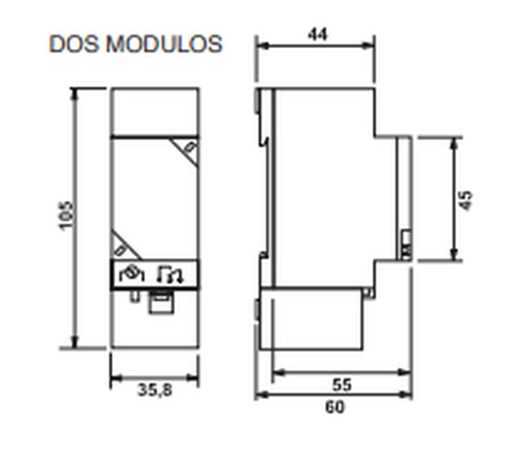

DIN rail mounting. 2 modules wide
Contactor support YES
Zero crossing YES
Operating Temperature (ºC) (min) -10
Operating Temperature (ºC) (max) 50
Environmental Protection IP20 according to DIN EN 60529
Comments (10)
Questions (2)
Hay un disco azul con los elementos que sirven para determinar el tiempo de funcionamiento, una esfera horaria mas dentro, en blanco y en el centro una ruedecita independiente gris. ¿ como hago para establecer la hora real y que quede posicionada la esfera horaria de manera que funcione en los periodos definidos en hora real?
Buenas tardes, le adjunto el link a las instrucciones donde explica la programación del equipo .
Atentamente, el equipo de Voltiks.
como se pone en hora?
hay que hacer coincidir la hora del circulo gris con la flecha.
buen material
Buen material a buen precio
Buen producto y rapido
Perfecto, sin ningún problema, volvaré a contar con ustedes.
buen material
buen producto, lo recomiendo.
Bonjour VOLTIKS, Horloge analogique très bon produit fonctionnement Bien Pour une première COMMANDE chez VOLTIKS, je suis très satisfaits Bonne Réception Mr Deshayes
Perfecto
ME GUSTA BASTANTE
Todo perfecto. Muchas gracias por la atención. Totalmente recomendable.
