Extractor Hood DBB60 Teka 40460400
Brand: TEKA
Reference: 40460400
Description
DBB60 Teka Pyramidal Wall Extractor Hood with 60 cm wide push buttons. Pulsating controls, three speeds, 2 incandescent lamps, operation indicator light, double turbine engine. Extraction capacities: min. 234 m3 / h - max. 380 m3 / h
Details

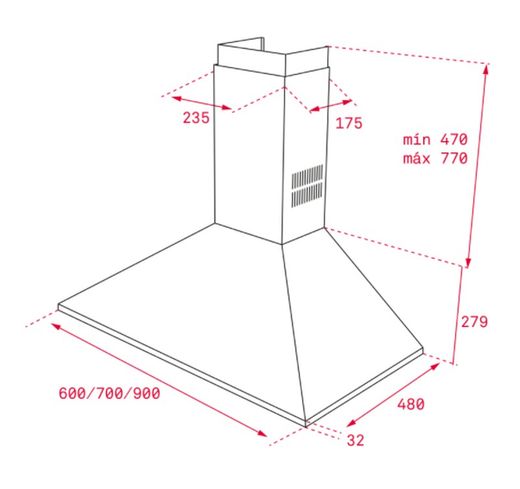

Interior measurements
Inner height (mm): 770
General measures
Product height (mm): 7491049
Product width (mm): 600
Product depth (mm): 480
Product Weight (Kg): 7,4
features
Bell type: Pyramidal
Style: Decorative
Certificates: CE; CB
Outlet Ø (mm): 150
Interior light type: LED
Indoor light consumption (W): 5
Plug: European plug
Power supply (V): 220 240
Frequency (Hz): 50/60
Total power of the hood (W): 115
Number of motors: 1
Motor power (W): 105
Extraction capacity-free outlet (m3 / h): 475
EU Regulation No. 65/2014 & 66/2104
Annual AEC Energy Consumption (kWh / year): 62.3
Energy class: D
Fluid Dynamic Efficiency (FDEhood): 6.9
Fluid Dynamic efficiency class: F
Lighting Efficiency (Lehood) lux / Watt: 5.9
Lighting efficiency class: F
Fat filtering efficiency class: D
Air flow (Qmin) m3 / h: 234
Maximum air flow (Qmax): 380
Airflow (Qboost): 0
Sound power (LwA) speed min (dB): 44
Sound power (lwa) maximum speed (dB): 60
Sound power (LwA) speed intensive (dB): 0
Power in off mode (Po) w: 0.00
Standby Power (Ps) W: 0.00
Energy Efficiency Index (EEI): 93.3
Time increase factor: 1.8
Electric power input at best efficiency point (Wbep): 83.7
Nominal power of lighting system (WL) w: 10
Average illumination of the lighting system on the cooking surface (Emiddle) lux: 59
accessories
Non-return valve: Yes
Output reduction: Yes
Output extension: No
Carbon filter (optional): D4C
Carbon filter description: ACTIVE CARBON FILTER D4C
Conventional recirculation kit (with tube cover): 40490146
Models
Number of filters: 2
Filters type: Aluminum
Control panel: Push buttons
Number of speeds: 3
