BASIC INFORMATION
Series: Simon 500 Cima
Version: 6 double elements
Number of modules: 12
Available in: 1, 2, 3, 4 and 6 double elements
KIT availability: No
Compatibility: Simon 500 Cima and Simon 27 Play / Simon K45 mechanisms through specific adapter

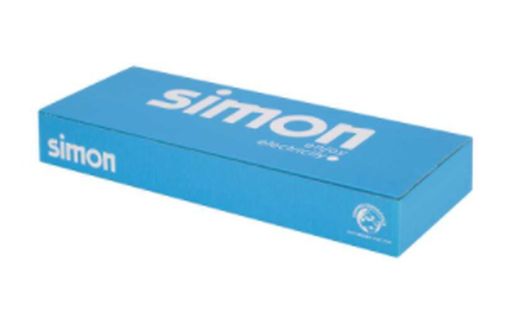

Packaging content: Recessed wall box, protective cover for box, metal partition and film to cover the pre-punched elements of the box
Observations: The embedding box can be used as a template during installation thanks to the guides to mark the perimeter of the box
TECHNICAL INFORMATION

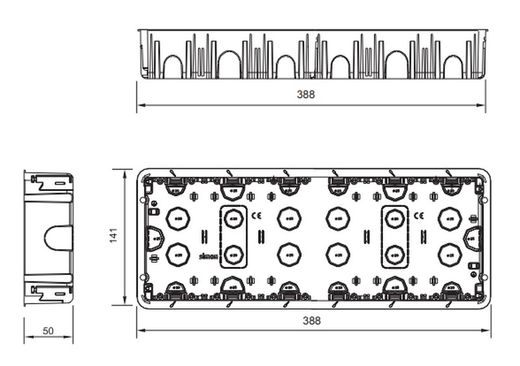

Dimensions: 390 x 143 mm
Depth: 50mm
Gripper operating range: between 4 and 30 mm
Heat resistance: +125 ºC (according to IEC 60695-10-2 standard)
Extinction: +850 ºC / 30 seconds (GWFI according to IEC 60695-2-11 standard)
Insulation resistance:> 5MOhms at 500V
Dielectric strength: no holes or contours, with 2000 V at 50 Hz for 1 minute
Number of side entrances: 2
No. of pre-drilled holes Ø25 mm: 16
No. of pre-drilled holes 30 x 70 mm: 2
Clamp Bracket Holes Number: 22
Electromagnetic immunity for VDM cabling: Ensured by installing the metal partition in the housing fitted in the box for this purpose.
IP rating: 4X
IK Rating: 7
RAL: Does not have
Manufacturing material: Halogen-free thermoplastic that guarantees non-propagation of the flame in case of fire and low toxicity in case of smoke emission.
Product Type: Standard
Available Market: CE
