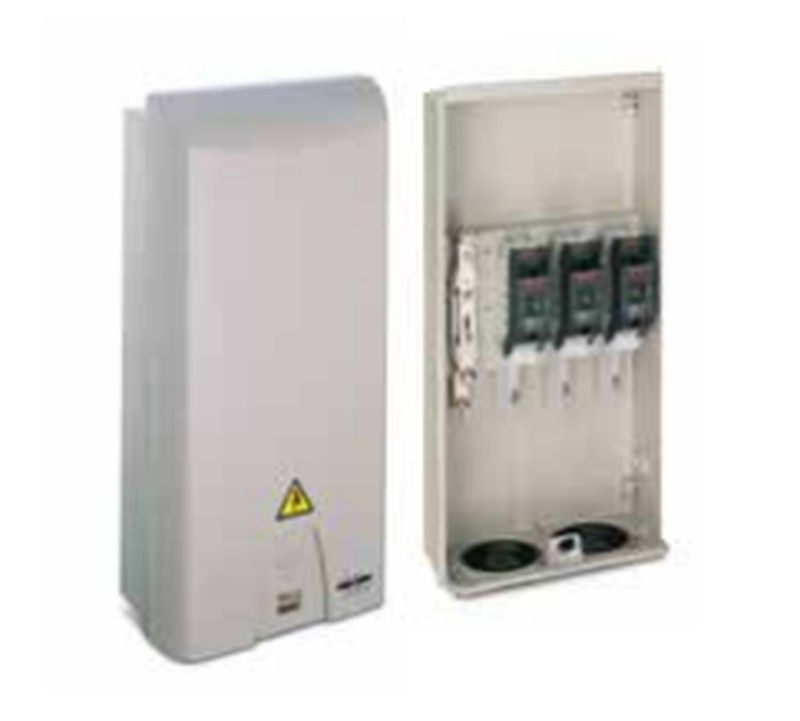

General protection box CGPH-160/7-BUC 160 A Scheneider Electric CGPH1607BUCC

CGPH-160/7-BUC BOX IN PADLOCK

• Reference ENDESA CGP-7-160-BUC

• Enclosure consisting of box + insulating cover thermal class A

and closure by captive triangular head screw

• Degree of protection IP43 according to UNE 20324

• Impact protection IK09 according to UNE 50102

• Scheme 7

• 3 BUC size 00 fuse bases (160 A) with stainless steel hardware. M10

• In. maximum fuses 160 A (not included)

• Neutral sectionable with stainless steel screws. M10

• 1 50 mm2 bimetallic terminal

for ground wire connection located

at the neutral connection

• 3F + N connection with bimetallic terminals

• 2 insulating cable gland cones for 4 cables each up to 240 mm2

• 1 cone for ground wire

• Padlock interlocking accessory

• Dimensions: 636 x 307 x 163 mm

• Color: RAL 7035
