Helical Duct Extractor TD-160 / 100N 230V 50HZ Soler y Palau 5211318000
Brand: SOLER Y PALAU
Reference: 5211318000
Description
Low profile helicocentrifugal fans. The body-motor is removable without the need to touch the pipes. Made of plastic material (models 160 to 800) or galvanized steel sheet protected with anticorrosive epoxy-polyester paint (models 1000 to 6000).
Details
TD-160/100 N SILENT (220-240V50HZ) RE - INLINE EXTRACTORS
ErP data
Eco-friendly design
Commission Regulation (EU) No. 1253/2014 of July 7, 2014
Information requirements (annex V)
Commercial Product TD-160/100 N SILENT
(220-240V50HZ) RE
ID 5211318000
CEE temperate climate (kWh / (m2.an)) -11.14
CEE class NA
CEE cold climate (kWh / (m2.an)) -28
CEE warm climate (kWh / (m2.an)) -2
Unidirectional UVR declared type
Drive type 2 speed
SRC Type None
Thermal efficiency (%) 0
Maximum flow (m3 / h) 125
Electric input power at maximum flow (W) 27.71

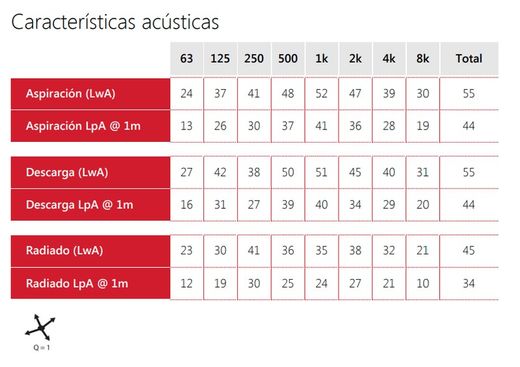

Sound power level (LWA) 43
Reference flow (m3 / s) 0.0245
Reference pressure difference (Pa) 41.8
Specific input power (W / m3 / h) 0.1919
Regulation factor 1
Control type Manual
Maximum internal leak rate for UVB (%) Not applicable
Maximum external leakage rate for UVU and UVB (%) 5
Ductless UVB Mixing Index (%) Not Applicable
Filter warning sign location Not applicable
Description of the filter warning sign Not applicable
Sensitivity of air flow to pressure variations Not applicable
Indoor / outdoor air tightness (m3 / h) Not applicable
Annual electricity consumption - temperate climate (kWh / a) 2.4
Annual electricity consumption - hot weather (kWh / a) 2.4
Annual electricity consumption - cold weather (kWh / a) 2.4
Annual heating savings - temperate climate (kWh / a) 17.15
Annual heating savings - hot climate (kWh / a) 7.76
Annual heating savings - cold climate (kWh / a) 33.55
Comments (1)
Questions (3)
Se puede usar como extractor de humedad en un baño?
Correcto, la renovación del aire va a evitar la condensación.
Do you provide delivery (with costs) to Singapore for Soler & Palau Model TD-160/100N? Thank you.
I am sorry to inform you that we do not currently have that service.
estos extractores son tubulares? Donde puedo conseguirlos en Tenerife?
Si la instalación es para tubo de d.100. Puedes conseguirlo on-line en nuestra web. Atentamente, el equipo de Voltiks.
Era para sustituir uno averiado y a ido perfecto.
