Plinth for turret 500 Cima with white floor channel Simon 52554204-030
Brand: SIMON
Reference: 52554204-030
Description
The 85x18 mm single-sided 500 Cima turret plinth for fixing a 2-sided plastic turret, this plinth provides the ideal finish to complete the installation of the Simon 500 Cima turret. Made of halogen-free thermoplastic materials, it prevents the spread of flame and smoke toxicity in the event of a fire.
Details
BASIC INFORMATION
Series: Simon 500 Cima
Version: 2 sides
Finish: white
Available in: 2 sides
Packing content: Floor channel inlet socket
Observations: Integrates the minitower into the 85x18 mm floor gutter
TECHNICAL INFORMATION

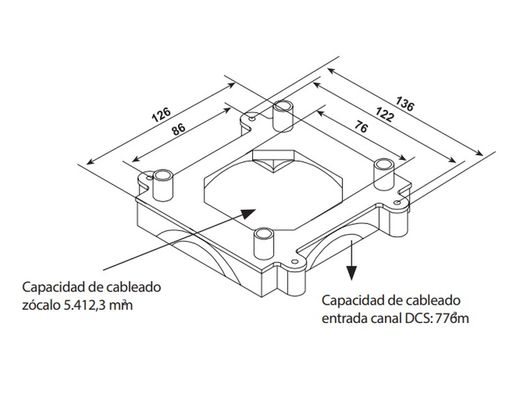

Dimensions: 126 x 136 mm
Depth: 11.5mm
Dimensions of the power cable in socket: 76 x 86 mm
Heat resistance: +125 ºC (according to IEC 60695-10-2 standard)
Extinction: +850 ºC / 30 seconds (GWFI according to IEC 60695-2-11 standard)
Insulation resistance:> 5MOhms at 500V
Dielectric strength: no holes or contours, with 2000 V at 50 Hz for 1 minute
IP rating: 4X
RAL: 9003
Manufacturing material: Halogen-free thermoplastic that guarantees non-propagation of the flame in case of fire and low toxicity in case of smoke emission.
Product Type: Standard
Available Market: CE
