Staircase automatic timer PULSAMAT 230V OB200001 Orbis
Brand: ORBIS
Reference: OB200001
Offer: €49.55 (€40.28 Without VAT)
PVP: €78.45
Product sold out, not available at this time.
Next stock entry on the way, expected
Description

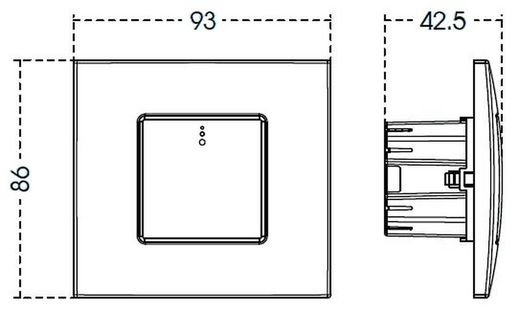

Staircase automation timer PULSAMAT 230V controls all types of loads, including fluorescence, LED, small extraction motors, etc. Installation in a 65x65 mm mechanism box and requires 3 wires (phase, neutral and lamp return). Activation through capacitive touch sensor. LED pilots to be seen in the dark. Timing from 30 s to 10 min.
Details
More information
Power supply: 230 Va.c., 50 Hz
· Breaking power: 6 A 230 Va.c.
Temp. operation:-10 ºC to +50 ºC according to EN 60730-2-7
Degree of protection: IP 20 according to EN 60529
Maximum loads
- Incandescent lamps: 1300 W
- Fluorescent: 1200 VA
- Low voltage halogen: 1000 VA
- Halogens (230V AC): 1300 W
- Low consumption lamps: 600 VA
- LED lamps: 90 VA
