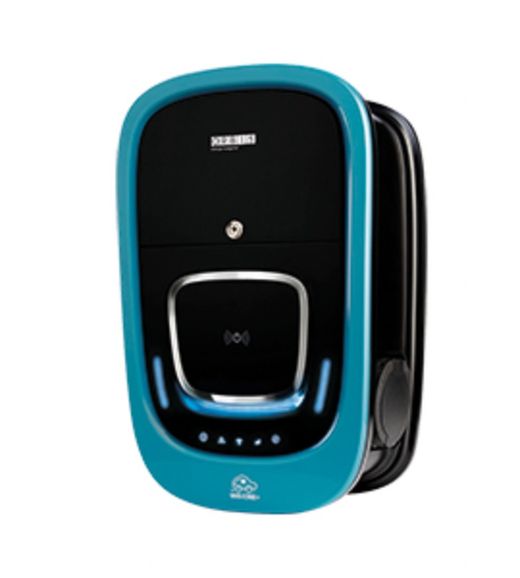

VIARIS COMBI with Single-phase Protections 7.4 kw and t2 hose 5m wifi, ethernet OB94P2209A2 Orbis

VIARIS COMBI + 230 V Protections

Applications Area of application

Charging of electric vehicles both in residential

installations (single-family or community garages)

and tertiary (office garages, shopping centers,

hospitals, companies, etc.)

- Intelligent single-phase charger for electric or plug-in hybrid cars, motorcycles and

bicycles.

- Attractive design, easy to use and easy installation

mainly in garages in the tertiary sector: hotels,

hospitals, shopping centres, public car parks, companies

with fleets of vehicles, etc.< /p>

- Includes load modulator that will take into account the consumption

of the installation/home and will adjust the power demand

to achieve the greatest recharge in the least possible time without

exceeding the contracted power. In VIARIS COMBI + devices with

two outputs, the charge modulator distributes the energy

available between the two outputs.

- Limitation of the maximum current to via selector or App.

- DC leakage current detector for the

protection of people.

- Models with connection cable (hose ) or with a built-in

power outlet. Charging mode 3 (high level

of communication).

- Available connection cable (hose) with Type 1

or Type 2 connector according to EN 62196 .

- Touch / RFID activation.

- Wi-Fi and Ethernet communication.

- Time programming.

- From the mobile phone with the VIARIS APP we can control

the power, consult the history of consumption, program the

duration and plan charging times to take advantage of the

rates electricity with time discrimination.

- Remote firmware update.

- Mobile notifications.

- LED signaling of the status of the VIARIS COMBI + and of the< /p>

vehicle load.

- PC casing with high resistance to IK10 impacts and

high deformation temperature.

- Degree of IP54 protection.

- USB port (interior).

- RS-485 communication with MODBUS protocol.

- These chargers implement the protocols of

standard communications MQTT, HTTP and OCPP 1 .6 with

cloud storage, which allows remote control and

viewing of the charging system, while facilitating

integration on other management platforms.

The following accessories can be added:

- Protections against temporary and transient overvoltages,

magnetic-thermal switch and differential switch (according to ITCBT-52).

- Additional output by connection cable (hose) Type

1 or Type 2 or socket outlet Type 2 or Schuko.

< p>- Energy meter with MID Certification and approved to

manage usage costs.

- Integration in SPL-ORBIS system.

- RFID cards (5 units).

- VIARIS Management Platform.
