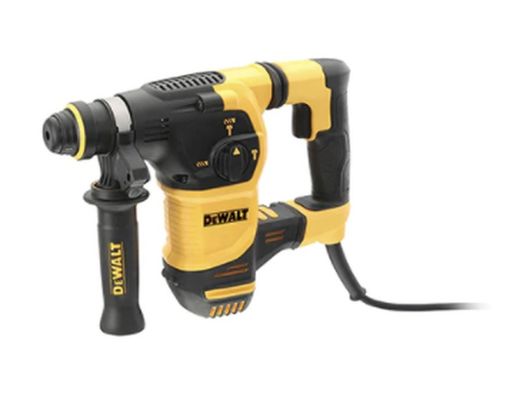

CHARACTERISTICS D25333K-QS
Class Leader with Drilling Performance

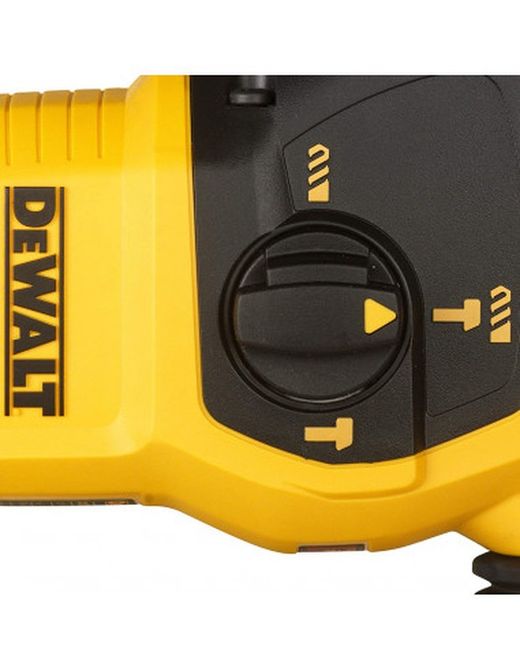

Rotation Stop for light chiselling applications on plaster and tiles; Y
Impact Stop for drilling in wood, ceramic or metal
Perform & Protect: the lowest vibration in its category at 10m / s², minimizing user fatigue
Mechanical safety clutch that eliminates jerky reactions when the bit sticks while drilling
Compact, lightweight and ergonomic design for greater comfort and support during long periods of work Ideal for anchor drilling in concrete and brick from 4mm to 30mm
Perform & Protect: with D25304DH (sold separately) helps reduce harmful air emissions emitted into the atmosphere
STANDARD EQUIPMENT

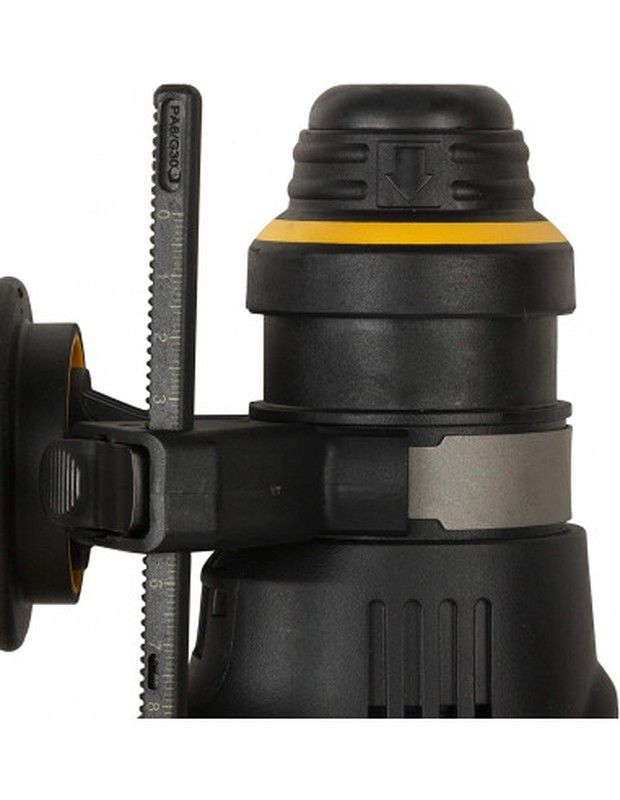

Depth adjustment
Multi-position side handle
TSTAK Briefcase SPECIFICATIONS
SDS-Plus tool holder
Power 950 W
Voltage 0 V
Output power 0 W
Impact Energy (EPTA 05/2009) 3.5 J
No load speed 0-1150 rpm
Impacts per minute 0-5200 ipm Max.
Drilling capacity [Concrete] 30 mm Max.
Drilling capacity [Core hole] 65 mm Max.
Drilling capacity [Wood] 30 mm Max.
Drilling capacity [Metal] 13 mm
Weight 3.7 kg P
Length 355 mm Height 250 mm Width 95 mm
Hand / Arm Vibration -
Drilling in concrete 6.9 m / s² Uncertainty K 1 (vibration) 1.5 m / s²
Hand / Arm Vibration - Chisel 7.8 m / s Uncertainty K 2 (vibration) 1.5 m / s²
Hand / Arm Vibration - Drilling in metal <2.5 m / s² Uncertainty K 3 (vibration) 1.5 m / s²
Hand / Arm Vibration - Screwing without impact <2.5 m / s² Uncertainty K 4 (vibration) 1.5 m / s²
Sound pressure 93 dB (A) Uncertainty K 1 (sound) 3 dB (A)
Acoustic Pressure 104 dB (A) Uncertainty K 2 (sound) 3 dB (A)
