BASIC INFORMATION
Series: Simon 500 Cima
Version: 6 double elements
Number of modules: 12
Finish: white
Available in: 1, 2, 3, 4 and 6 double elements
KIT availability: No
Compatibility: Simon 500 Cima and Simon 27 Play / Simon K45 mechanisms (using specific adapters), combinable with the Simon Trunking range
Packaging content: floor box, metal partition, grounding cable, fixing bolts, screws and installation manual
Remarks: As an alternative, you can screw the frame brackets into the box if you need additional fixing.
TECHNICAL INFORMATION

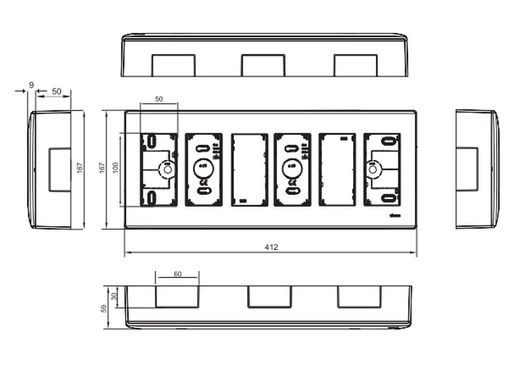

Dimensions: 412 x 167 mm
Depth: 50mm
Heat resistance: +125 ºC (according to IEC 60695-10-2 standard)
Extinction: +850 ºC / 30 seconds (GWFI according to IEC 60695-2-11 standard)
Insulation resistance:> 5MOhms at 500V
Dielectric strength: no holes or contours, with 2000 V at 50 Hz for 1 minute
Number of side entrances: 5
No. of pre-drilled holes Ø25 mm: 2
No. of pre-drilled holes 30 x 50 mm: 2
No. of pre-drilled holes 40 x 80 mm: 0
Clamp Bracket Holes Number: 24
Electromagnetic immunity for VDM cabling: Secured by installing the metal partition in the housings fitted into the box for this purpose.
IP rating: 4X
IK Rating: 7
RAL: 9003
Manufacturing material: Halogen-free thermoplastic that guarantees non-propagation of the flame in case of fire and low toxicity in case of smoke emission.
Product Type: Standard
Available Market: CE
